Machine function:
Q1245 Electric Beveller suitable for diameter 50-426mm, wall thickness seamless pipe endbeveling of 6-100mm.
Main technical parameter:
1、Motor power：N=5.5KW , n=960rpm
2、Cutterhead speed：n=54-206rpm 6positions
3、Processing range：Pipe diameter 30-426mm Pipe wall thickness 6-100mm
4、Angle kinfe frame regulation range：Between 0-35o
5、Differential speed automatic feeding spdde：0、0.17mm/r
6、Axial movement speed manual：18.8mm/r Axial movement of stroke：250mm
7、Styles can be machined groove：Single V, double V, U and other forms
8、Cutter diameter：450mm
9、Machine Center High：H=1000mm
2、Cutterhead speed：n=54-206rpm 6positions
3、Processing range：Pipe diameter 30-426mm Pipe wall thickness 6-100mm
4、Angle kinfe frame regulation range：Between 0-35o
5、Differential speed automatic feeding spdde：0、0.17mm/r
6、Axial movement speed manual：18.8mm/r Axial movement of stroke：250mm
7、Styles can be machined groove：Single V, double V, U and other forms
8、Cutter diameter：450mm
9、Machine Center High：H=1000mm
2.Process size：OD114----1620mm thickness 10-100mm.
3.Bevel type：Single V, double V and U type.
4.With pipe and elbow support plate.
5.For elbow, tee, bend, pipe and tee end beveling.

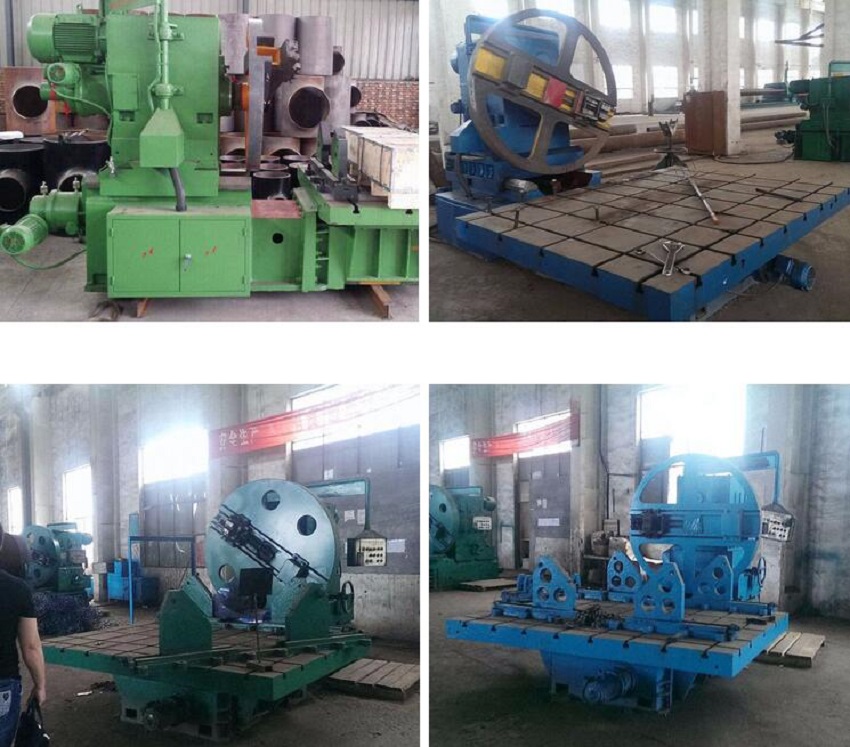

The Elbow beveling machine has the features of unique design,compact
structure,beautiful look and convinent to operate.It is ideal equipment
for chamfering metal right angle elbow end.The products processed by the
machine are complying with relavant elbow beveling standard.
Elbow
beveling machine can be used for treatment of pipes material:carbon
steel,stainless steel and alloys.Cold cutting process will not influence
the quality of the material of the pipe.The machine is safe,convenient
and widely-used,and it is a ideal pipe end beveling processing equipment
